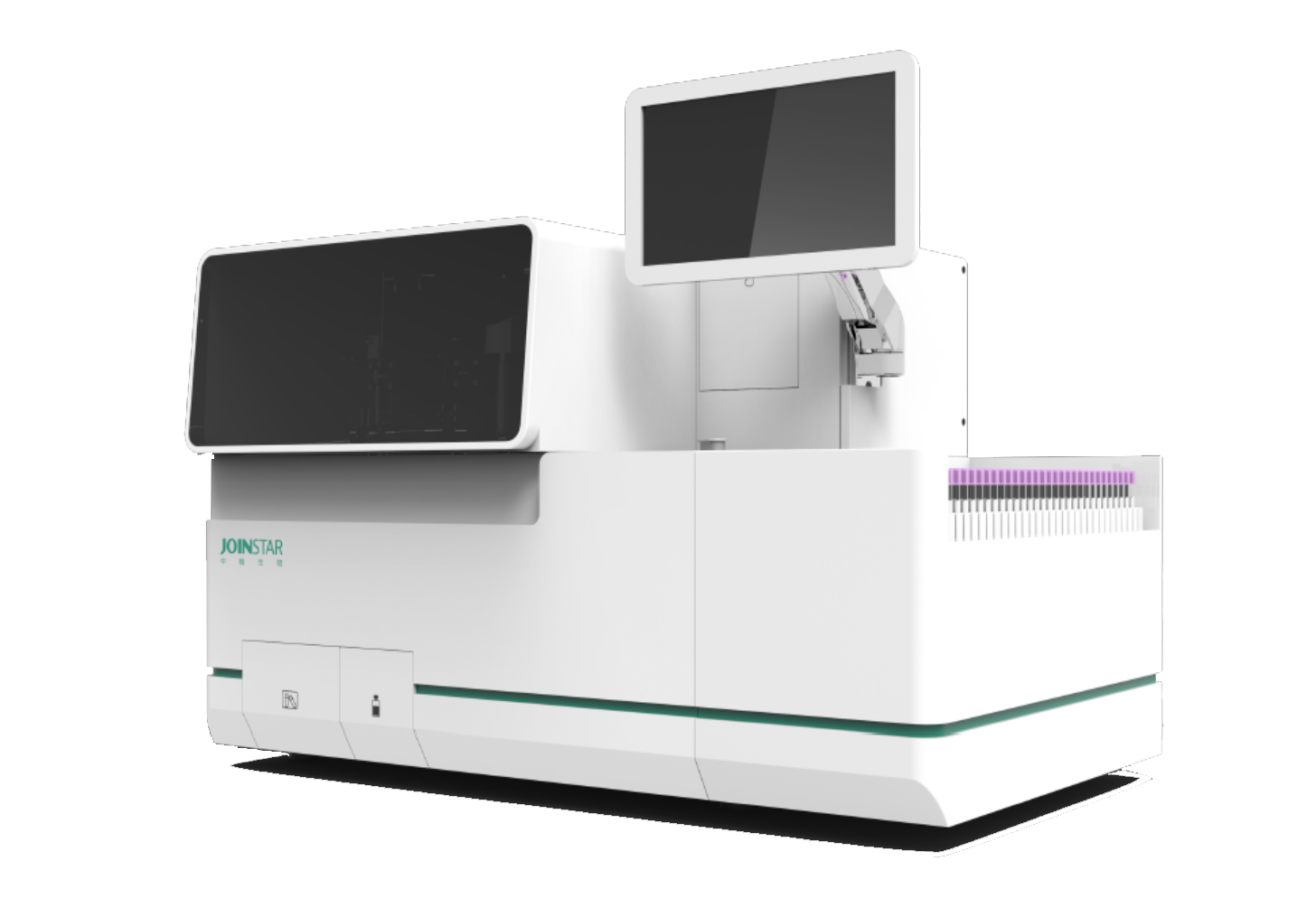

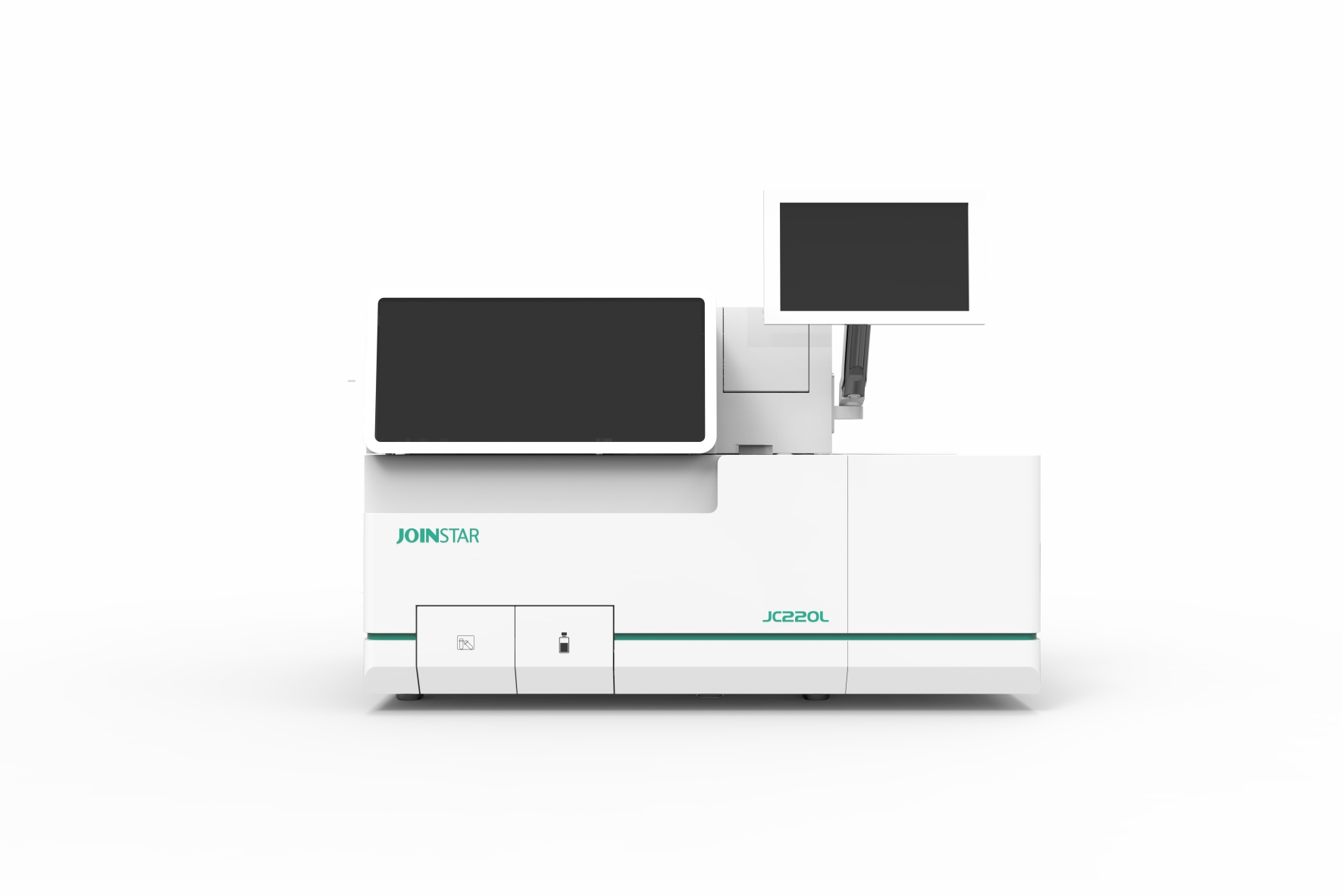

JC 220 - Fully Automated CLIA Analyzers

TEST MENU

Benefits

Optimized Operational Efficiency

The integration of "True Whole Blood" technology simplifies sample processing, allowing clinical laboratories to streamline daily workflows.

Comprehensive Clinical Insight

The system empowers healthcare providers with broad diagnostic capabilities, covering critical disease areas including Cardiovascular Disease (CVD), Alzheimer's Disease (AD), and Tumors.

Proactive Disease Management

The platform supports early screening and continuous disease monitoring, enabling clinicians to confidently evaluate conditions such as cognitive impairment and myocardial injury.

Versatile Diagnostic Application

It functions as a consolidated solution for diverse testing requirements, allowing laboratories to efficiently process panels ranging from coagulation function to reproductive health and glycometabolism.

Features

Feature	Technical Details
Methodology	Direct Chemiluminescence Immunoassay (Acridinium Ester)
Throughput	220 T/h
Time to First Result	9 minutes
Reagent Positions	18
Sample Positions	125 positions; supports continuous loading and STAT (emergency) prioritization
Onboard Refrigeration	2–8°C, 24-hour continuous cooling
Sample Types	Serum, plasma, urine, cerebrospinal fluid (CSF), etc.
Data Storage	8GB
Size	1170mm×700mm×740mm
