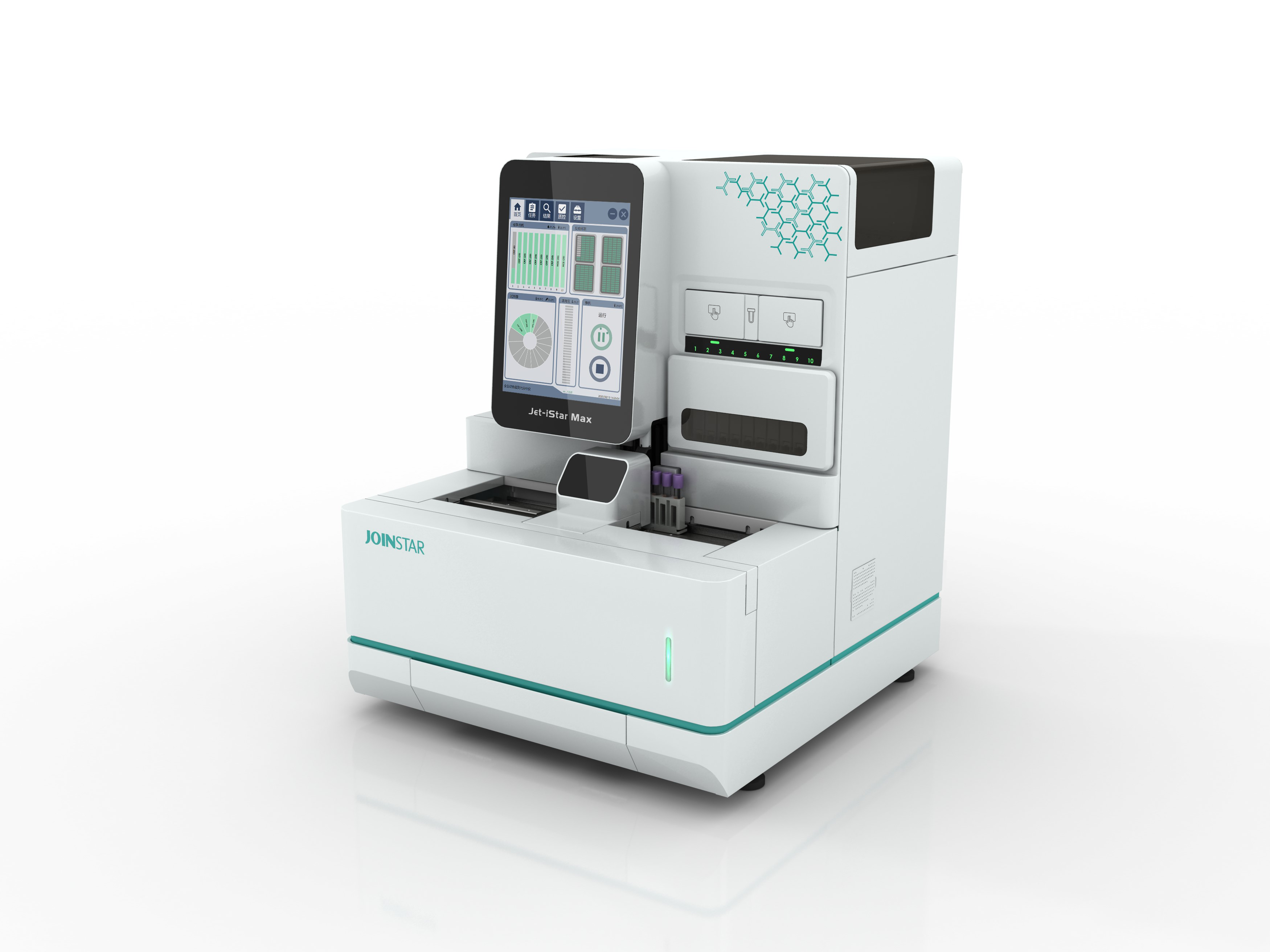

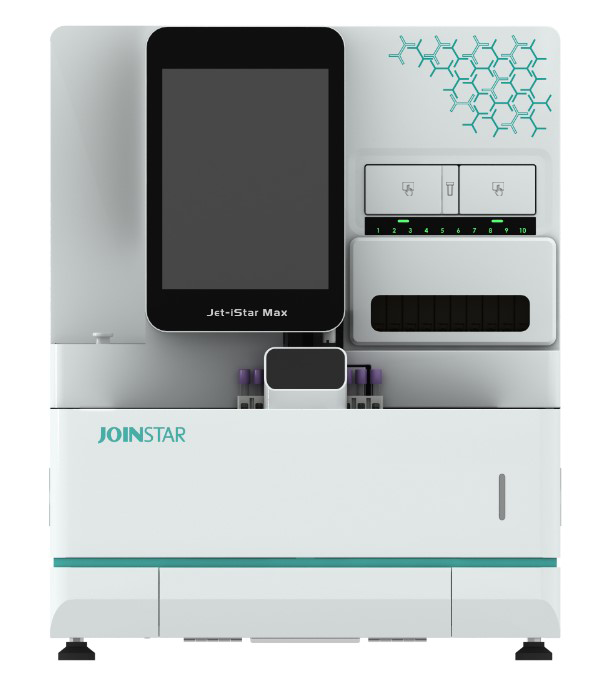

Jet-iStar Max: The Fully Automated Flagship

Ideal for: Regional testing centers, large central laboratories, and high-volume clinical labs.

Benefits

Maximum Safety & Automation

Features needle piercing technology allowing whole blood testing without uncapping the tube, ensuring high biosafety.

High Capacity

Loads up to 50 samples at once with a testing speed of 120 tests per hour.

Infinite Scalability

The "Jet-iStar Infinity" connects two Max units via a track module, doubling the throughput and enabling fully automated assembly-line testing

Feature	Technical Details
Methodology	Dry Quantitative Immunofluorescence
Test Time	3~18 min/test
Throughput	120 T/h
Sample Volume	10~150 uL
Incubation / Reagent Area	Incubation buffer capacity: 30; <> Reagent area holds up to 200 test cartridges, supporting on-the-fly reagent replacement without pausing
Reaction Cup Area	2 positions, holds up to 192 disposable reaction cups, supporting on-the-fly replacement without pausing
Storage Capacity	≥ 2 GB
Weight	~ 130 KG
Size	700mm x 740mm x 860mm (L x W x H)
